DHS D2100
Great Workstation for Designers!
The DHS D2100 workstation is our entry level system with the designer in mind, high CPU with an array of graphics options. It features a powerful, factory overclocked Intel® Core™ i7 or Core™ i9 CPU ensures your system will provide the highest computing power available in its price range.
For both graphics and budget needs, we have added the NVIDIA Quadro P620, built for professionals and certified on leading CAD and DCC applications.
This workstation is great for CPU intensive applications such as Revit and AutoCAD as well as for graphics intensive applications such as 3dS Max, Maya, and Lumion.
CPU
The Intel® Core i7-11700K (Rocket Lake), with available water cooling and factory overclocking, will give you the power needed for any task.
Memory
The DHS D2100 comes default with 16 GB DDR 3200 MHz Memory (2 x 8 GB DIMMs) and is upgradable to 64 GB.
Hard Drives and Bays
Each system comes default with a single super fast 512 GB Intel 660P NVMe M.2 SSD drive, with upgrades available up to 2TB in size! Also choose from 2.5" SATA SSDs up to 2 TB and 3.5" 7,200 RPM HDDs up to 6 TB. These options give you so many ways to quickly store and access your data.
Graphics
Built for the professional, the Nvidia® Quadro P620 will give you the rending power you need at the price you want. This card is certified on leading CAD and DCC applications. Choose from an array of higher-end Quadro and GeForce graphics cards to turbo-charge your renderings.
Chassis
Housed in the sleek Aerocool QuartZ Revo case, the workstation is powered by an EVGA 850W modular power supply that is 80 PLUS Gold certified.
In independent Revit and Lumion benchmark testing, the DHS Professional series outperformed leading industry competitors. Benchmark results are available upon request.

Service and Support is our highest priority. We have built a strong reputation for quality and customer support. In the event a customer experiences down time due to a component failure, they know they can call us, day or night, and we’ll be there to help get them back up and running. If we can’t have a solution in place by the end of the day, we schedule a full replacement system to be sent to them overnight so they are guaranteed to be back up and running within 24 hours.
Our comprehensive 3 year warranty covers all parts, labor, and support related shipping costs necessary. We have advanced RMA and will work you to customize support based on your needs.
You can contact support at
Phone: 877-DHS-DHS2 (347-3472)
Email: [email protected]
Available Chassis:

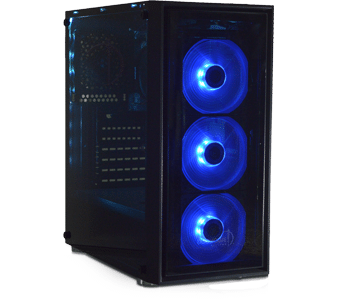

Aerocool QuartZ Revo - default (H: 19.7" x L: 19.6" x W: 8.25")
Corsair® Crystal Series 570X RGB ATX Mid-Tower Case (H: 20.16" x L: 18.9" x W: 9.21")
Motherboard:
ASUS ROG MAXIMUS XIII HERO Z590, ATX, LGA1151 socket with dual PCIe 3.0 GPU support, Dual channel memory, 6 x SATA3, 2 x M.2 sockets
Processors:
Default Processor
Intel® Core i7-11700K Processor (16M Cache, 3.6 GHz)
Intel® Turbo Boost Technology (dynamic overclock up to 5.0 GHz)
Intel® Hyper Threading Technology
Noctua NH-U9S Air Cooler - Default
Closed-loop CPU water cooler - Optional
8 Cores, 16 Threads
14nm process technology
11th Generation Rocket Lake Microarchitecture
Integrated Intel® UHD Graphics 750
Intel® Core i9-11900K Processor (16M Cache, 3.5 GHz)
Intel® Turbo Boost Technology (dynamic overclock up to 5.30 GHz)
Intel® Hyper Threading Technology
Closed-loop CPU water cooler
8 Cores, 16 Threads
14nm process technology
11th Generation Rocket Lake Microarchitecture
Integrated Intel® UHD Graphics 750
Memory:
Up to 64 GB DDR4 Kingston HyperX (16 GB minimum)
Operating Systems:
Default: Microsoft Windows 10 Pro 64 bit.
Video:
Available with either one Quadro or GeForce graphics card
Default card: NVIDIA Quadro P620 (2 GB)
Interface: 4 x Mini-DisplayPort
Max output resolution: 5120 x 2880 (5K) at 60Hz
Supports up to 4 displays
Optional graphics cards:
NVIDIA GeForce GTX 1660 Ti (6 GB)
Interface: DVI-D, HDMI, DisplayPort
240Hz Max Refresh Rate
Max Digital : 7680 x 4320
Supports up to 3 displays
VR Ready
NVIDIA GeForce RTX 3070 (8 GB)
Interface: PCI-E 4.0 x16, 1 x HDMI, 3 x DisplayPort
240Hz Max Refresh Rate
Max Analog : 2048x1536
Max Digital : 7680x4320
Supports up to 4 displays
VR Ready
NVIDIA GeForce RTX 3080 (10 GB)
Interface: PCI-E 4.0 x16, HDMI, 3 x DisplayPort
144Hz Max Refresh Rate
Max Analog : 2048x1536
Max Digital : 7680x4320
Supports up to 4 displays
VR Ready
NVIDIA GeForce RTX 3090 (24 GB)
Interface: PCI-E 4.0 x16, HDMI, 3 x DisplayPort
144Hz Max Refresh Rate
Max Analog : 2048x1536
Max Digital : 7680x4320
Supports up to 4 displays
VR Ready
NVIDIA Quadro P2000 (5 GB)
Interface: 4 x DisplayPort
Max output resolution: 5120 x 2880 (5K) at 60Hz
Supports up to 4 displays
NVIDIA Quadro P4000 (8 GB)
Interface: 4 x DisplayPort
Max output resolution: 5120 x 2880 (5K) at 60Hz
Supports up to 4 displays
NVIDIA Quadro P5000 (16 GB)
Interface: Dual Link DVI-D, 4 x DisplayPort
Max output resolution: 7680 x 4320 at 30Hz
Supports up to 4 displays
NVIDIA Quadro P6000 (24 GB)
Interface: Dual Link DVI-D, 4 x DisplayPort
Max output resolution: 7680 x 4320 at 30Hz
Supports up to 4 displays
Hard Drive Bays:
Configurable up to 4 drives
Samsung up to 2 TB SSD SATA3 (up to 540 MB/s)
Western Digital Black Edition SATA3 (up to 6 TB, up to 186 MB/s)
M.2 NVMe slots:
Intel M.2 2280 form factor, up to 2 TB, up to 1800 MB/s throughput
Power Supply:
EVGA SuperNOVA 850W - 80 PLUS Gold fully modular
Rear connectivity:
1 x Marvell® AQtion AQC111C 5Gb Ethernet
1 x Intel® I219-V 1Gb Ethernet
1 x HDMI
4 x USB 3.2 Gen 2
4 x USB 3.2 Gen 1
2 x USB 2.0
1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x USB BIOS FlashBack Button(s)
1 x ASUS Wi-Fi Module
5 x Gold-plated audio jacks
Front connectivity supported:
4 x USB 2.0
2 x USB 3.0
Mic and Headphone jacks
Optional USB WiFi Adapter (up to 300 mbps)
Optional All-in-One card reader
This product line is new.
We will publish reviews for the DHS Series when they become available.
