DHS D4100

A Dream Workstation!

The DHS D4100 workstation is configured with the engineer in mind. It features the incredibly powerful 10-core Intel® Core™ i9-10900X CPU (upgradable to the 18-core Intel® Core™ i9-10980XE) that’s factory overclocked and water cooled it to ensure your system will provide the highest computing power available.

Default graphics horsepower is provided by the NVIDIA Quadro P620, built for professionals and certified on leading CAD and DCC applications.

This workstation is the best you can buy for CPU intensive applications such as Revit and AutoCAD as well as for graphics intensive applications such as 3dS Max, Maya, and Lumion.

$3,195.00

CPU

The ten-core Intel® Core i9-10900X Processor with factory overclocking and water cooling will give you power needed for any task. Upgrade to the 12-core Intel® Core i9-10920X, the 14-core Intel® Core i9-10940X, or the 18-core Intel® Core i9-10980XE Extreme processor for even more horsepower!

Memory

The DHS D4100 comes default with 16 GB DDR4 3000 MHz Memory (4 x 8 GB DIMMs), and is upgradable to 128 GB.

Hard Drives and Bays

Each system comes default with a single super fast 512 GB Intel 660P NVMe M.2 SSD drive, with upgrades available up to 2TB in size! Also choose from 2.5" SATA SSDs up to 2 TB and 3.5" 7,200 RPM HDDs up to 6 TB

Graphics

Built for the professional, the Nvidia® Quadro P620 will give you the rendering power you need at the price you want. This card is certified on leading CAD and DCC applications. Upgrade options for higher-end GeForce and Quadro cards are available

In independent Revit and Lumion benchmark testing, the DHS Professional series outperformed leading industry competitors. Benchmark results are available upon request.

Service and Support is our highest priority. We have built a strong reputation for quality and customer support. In the event a customer experiences down time due to a component failure, they know they can call us, day or night, and we’ll be there to help get them back up and running. If we can’t have a solution in place by the end of the day, we schedule a full replacement system to be sent to them overnight so they are guaranteed to be back up and running within 24 hours.

Our comprehensive 3 year warranty covers all parts, labor, and support related shipping costs necessary. We have advanced RMA and will work you to customize support based on your needs.

You can contact support at
Phone: 877-DHS-DHS2 (347-3472)
Email: [email protected]

Available Chassis:
Aero Quartz REVO Chassis - default (H: 19.7" x L: 19.6" x W: 8.25")

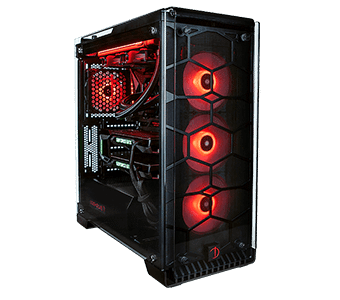

Corsair® Crystal Series 570X RGB ATX Mid-Tower Case (H: 20.16" x L: 18.9" x W: 9.21")


Motherboard:
ASUS ROG Strix X299-E Gaming II, ATX, LGA2066 socket with dual PCIe 3.0 GPU support, 8 x DIMM Quad-channel memory, 8 x SATA3, 2 x M.2 sockets


Default Processor:
Intel® Core i-10900X Processor (16.5M Cache, 3.7 GHz)
Intel® Turbo Boost Technology (dynamic overclock up to 4.5 GHz)
Intel® Hyper Threading Technology
EVGA CLC 240 CPU Water Cooler
10 Cores, 20 Threads
14nm process technology

Optional Processors:
Intel® Core i9-10920X Processor (19.5M Cache, 3.5 GHz)
Intel® Turbo Boost Technology (dynamic overclock up to 4.6 GHz)
Intel® Hyper Threading Technology
EVGA CLC 240 CPU Water Cooler
12 Cores, 24 Threads
14nm process technology

Intel® Core i9-10940X Processor (19.25M Cache, 3.3 GHz)
Intel® Turbo Boost Technology (dynamic overclock up to 4.6 GHz)
Intel® Hyper Threading Technology
EVGA CLC 240 CPU Water Cooler
14 Cores, 28 Threads
14nm process technology

Intel® Core i9-10980XE Processor (24.75M Cache, 3.0 GHz)
Intel® Turbo Boost Technology (dynamic overclock up to 4.6 GHz)
Intel® Hyper Threading Technology
EVGA CLC 240 CPU Water Cooler
18 Cores, 36 Threads
14nm process technology

All processors feature water cooling and stable factory overclocking


Memory:
Up to 128 GB DDR4 3000 MHz Kingston HyperX (16 GB minimum)


Operating Systems:
Default: Microsoft Windows 10 Pro 64 bit.


Video:
Available with either one Quadro or GeForce graphics card

Default card: NVIDIA Quadro P620 (2 GB)
Interface: 4 x Mini-DisplayPort
Max output resolution: 5120 x 2880 (5K) at 60Hz
Supports up to 4 displays

Optional graphics cards:

NVIDIA GeForce GTX 1660 Ti (6 GB)
Interface: DVI-D, HDMI, DisplayPort
240Hz Max Refresh Rate
Max Digital : 7680 x 4320
Supports up to 3 displays
VR Ready

NVIDIA GeForce RTX 3060 Ti (8 GB)
Interface: PCI-E 4.0 x16, 1 x HDMI, 3 x DisplayPort
240Hz Max Refresh Rate
Max Analog : 2048x1536
Max Digital : 7680x4320
Supports up to 4 displays
VR Ready

NVIDIA GeForce RTX 3070 (8 GB)
Interface: PCI-E 4.0 x16, 1 x HDMI, 3 x DisplayPort
240Hz Max Refresh Rate
Max Analog : 2048x1536
Max Digital : 7680x4320
Supports up to 4 displays
VR Ready

NVIDIA GeForce RTX 3080 (10 GB)
Interface: PCI-E 4.0 x16, HDMI, 3 x DisplayPort
144Hz Max Refresh Rate
Max Analog : 2048x1536
Max Digital : 7680x4320
Supports up to 4 displays
VR Ready

NVIDIA GeForce RTX 3090 (24 GB)
Interface: PCI-E 4.0 x16, HDMI, 3 x DisplayPort
144Hz Max Refresh Rate
Max Analog : 2048x1536
Max Digital : 7680x4320
Supports up to 4 displays
VR Ready

NVIDIA Quadro P2000 (5 GB)
Interface: 4 x DisplayPort
Max output resolution: 5120 x 2880 (5K) at 60Hz
Supports up to 4 displays

NVIDIA Quadro P4000 (8 GB)
Interface: 4 x DisplayPort
Max output resolution: 5120 x 2880 (5K) at 60Hz
Supports up to 4 displays

NVIDIA Quadro P5000 (16 GB)
Interface: Dual Link DVI-D, 4 x DisplayPort
Max output resolution: 7680 x 4320 at 30Hz
Supports up to 4 displays

NVIDIA Quadro P6000 (24 GB)
Interface: Dual Link DVI-D, 4 x DisplayPort
Max output resolution: 7680 x 4320 at 30Hz
Supports up to 4 displays


Hard Drive Bays:
Configurable up to 4 drives
Samsung up to 2 TB SSD SATA3 (up to 540 MB/s)
Western Digital Black Edition SATA3 (up to 6 TB, up to 186 MB/s)


M.2 NVMe slots:
Intel M.2 2280 form factor, up to 2 TB, up to 1800 MB/s throughput


Power Supply:
EVGA SuperNOVA 850W - 80 PLUS Gold fully modular or an optional EVGA SuperNOVA 1000W - 80 PLUS Platinum fully modular


Rear connectivity:
5 x Gold-plated Analog Audio Jacks
1 x Optical S/PDIF out
4 x USB 2.0
2 x USB 3.2 Gen 1 (blue)
4 x USB 3.2 Gen 2(3 x Type-A, 1 x Type-C)
1 x USB BIOS Flashback button
1 x Gigabit Ethernet

1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0/3.0+HS)

Front connectivity supported:
4 x USB 2.0
2 x USB 3.0
Mic and Headphone jacks

Optional All-in-One card reader

This product line is new.

We will publish reviews for the DHS Series when they become available.
